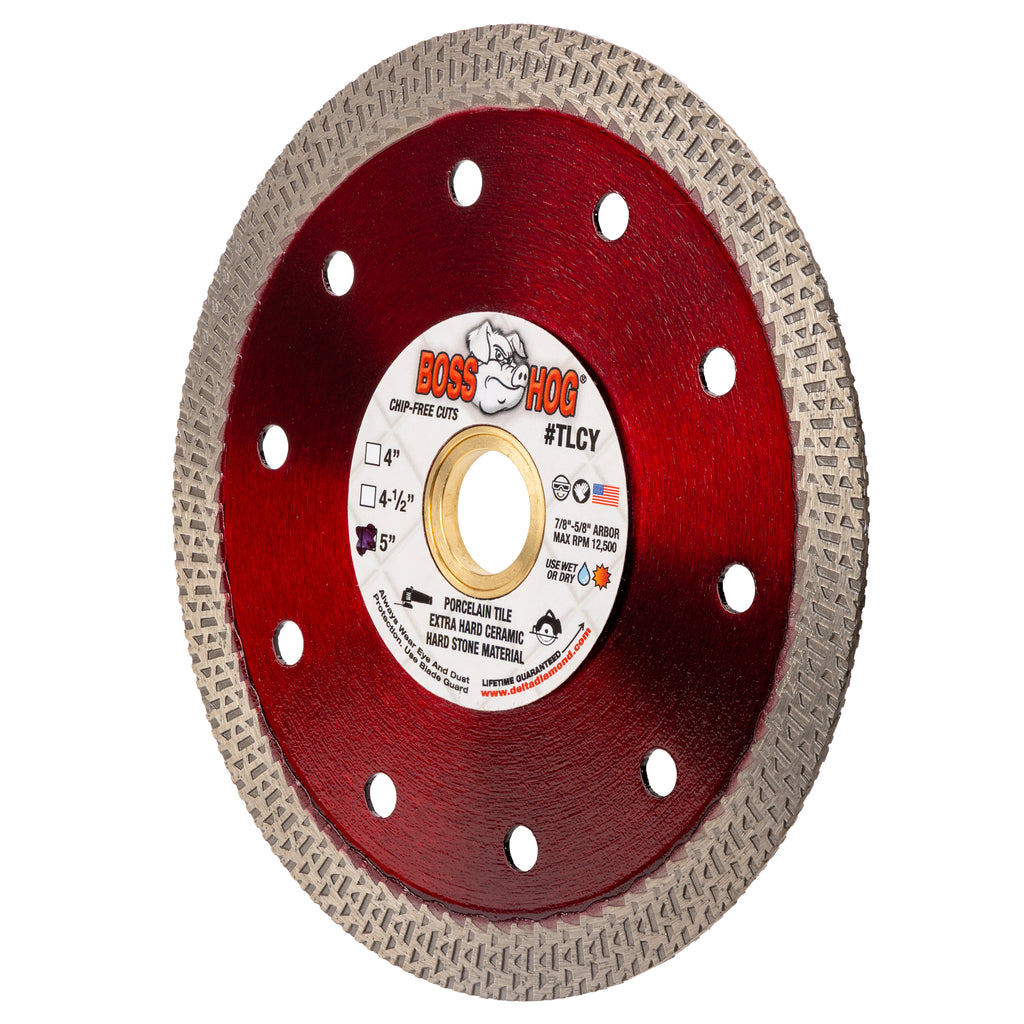

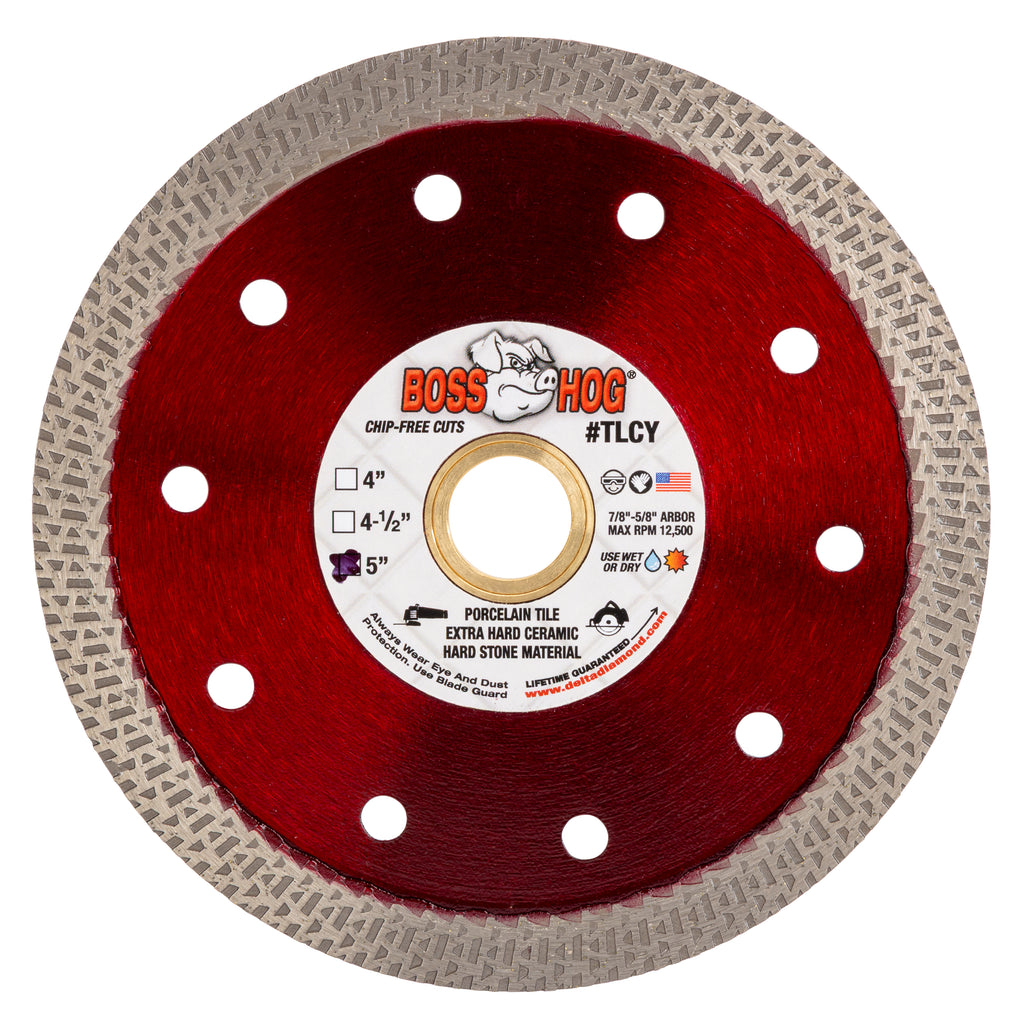

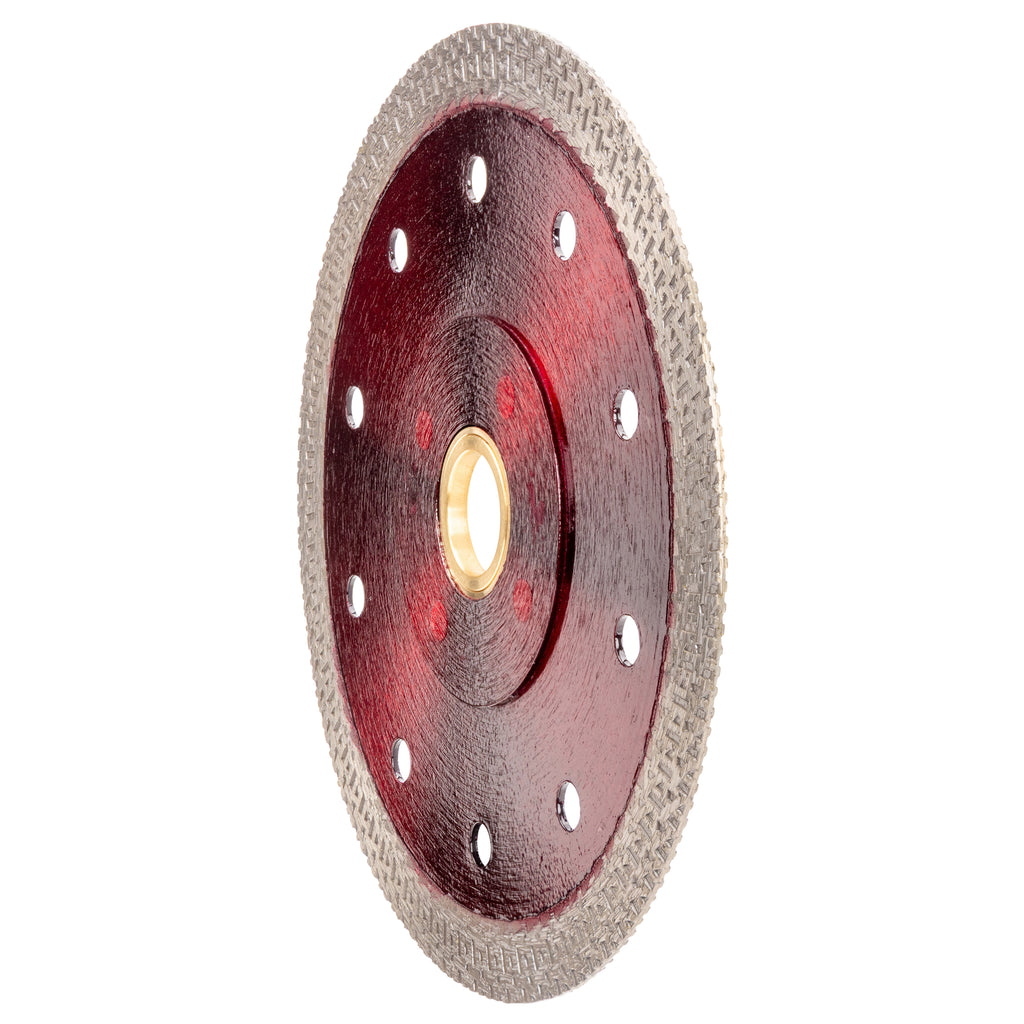

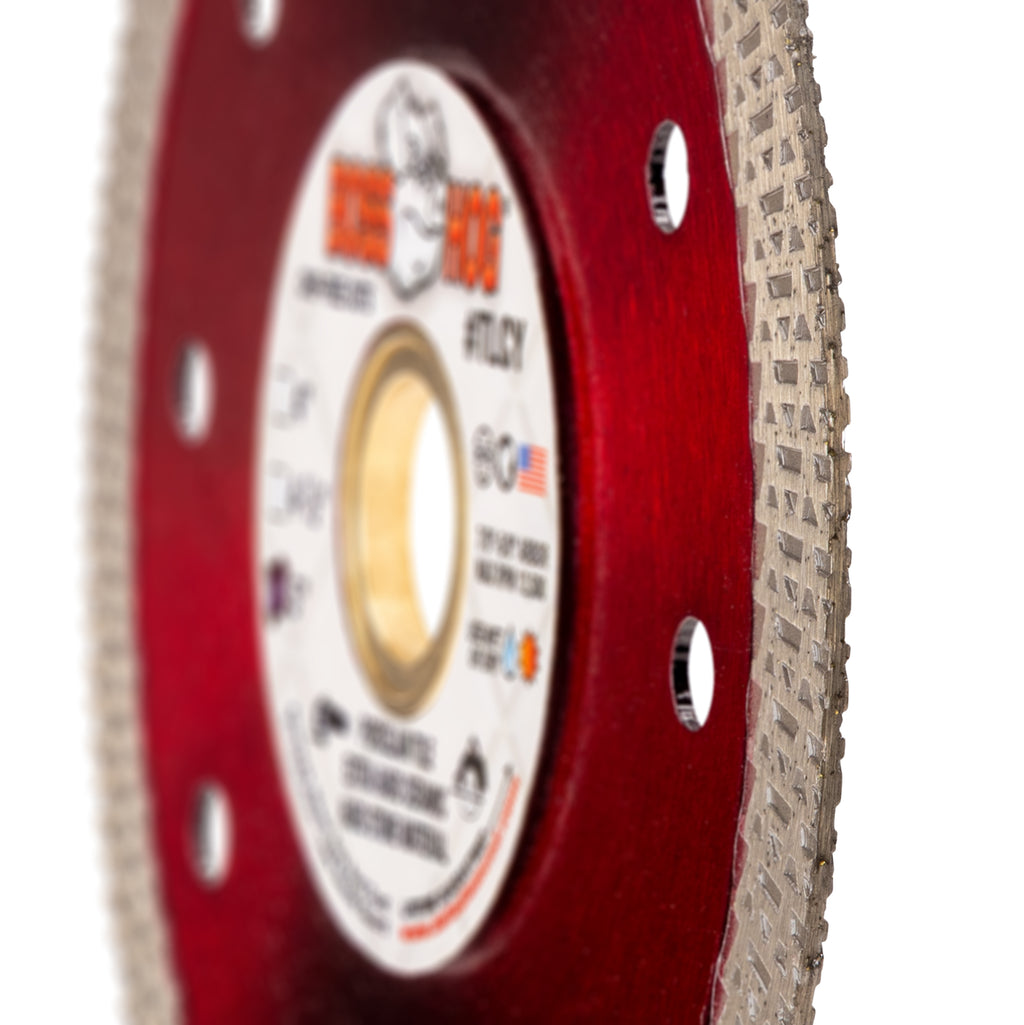

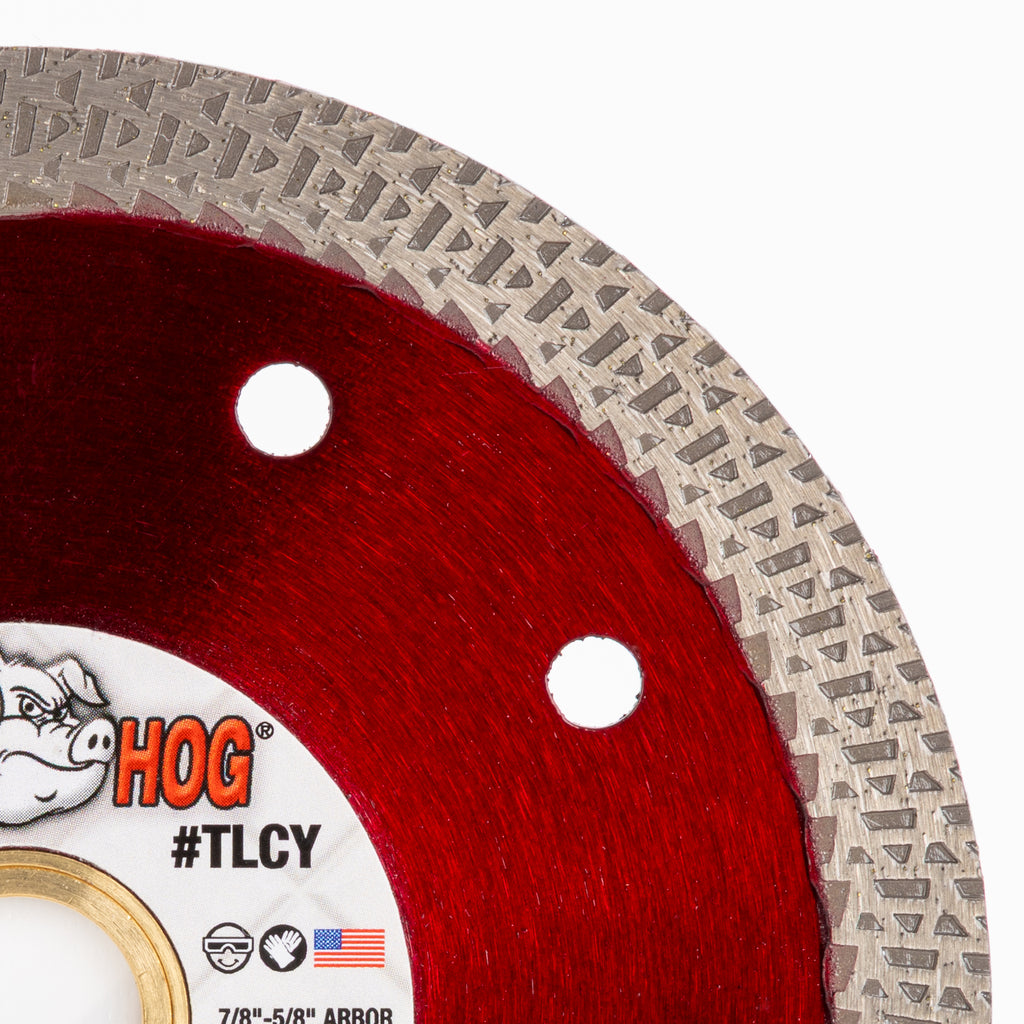

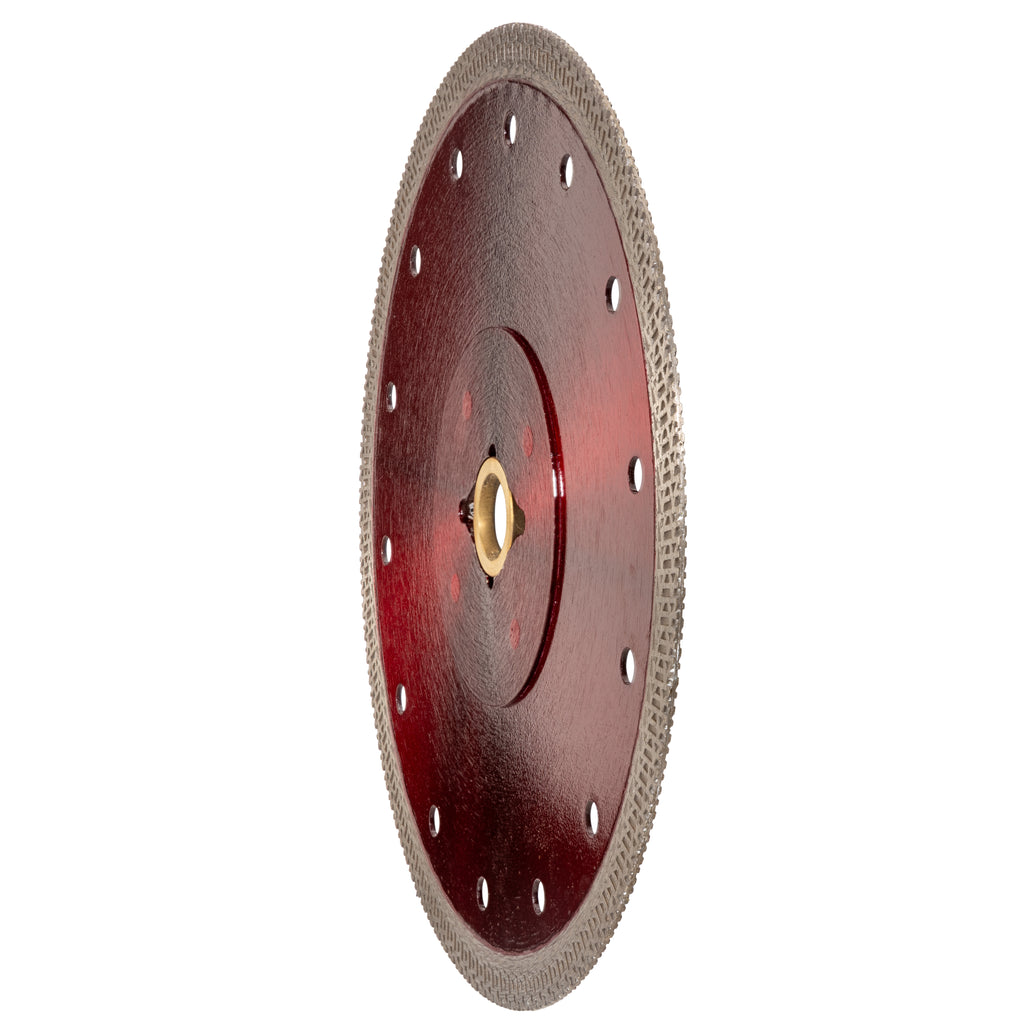

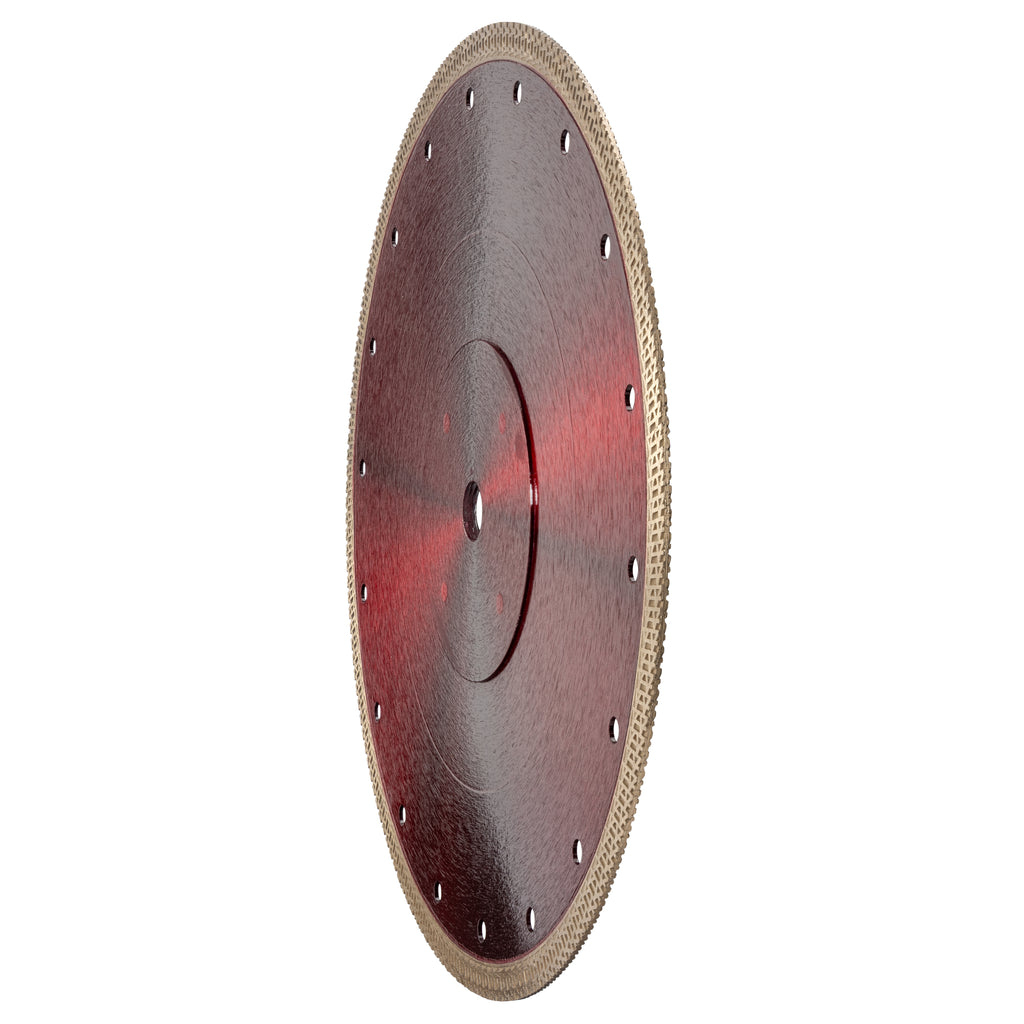

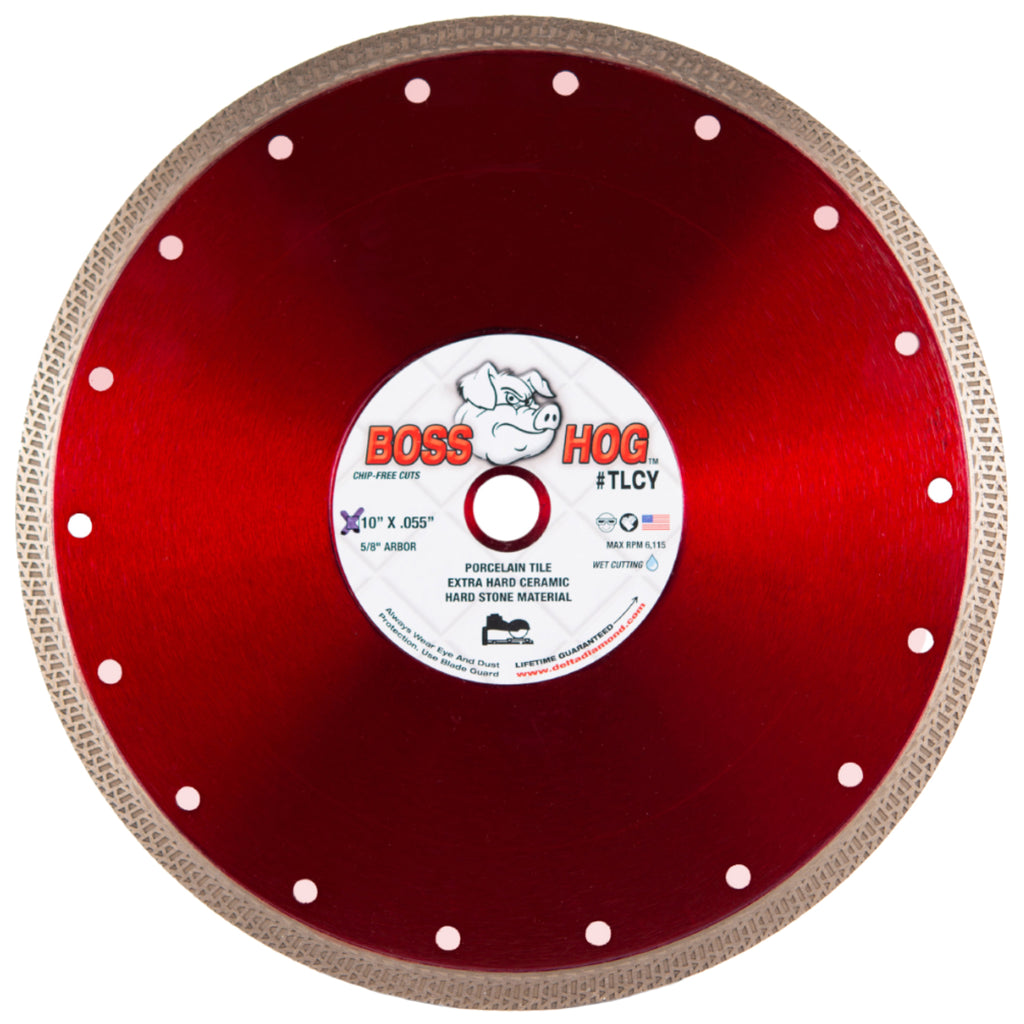

BOSS HOG® Mesh Turbo Diamond Blade, Supreme Grade, Use Wet or Dry for Porcelain, Ceramic, Granite, Stone, Sizes 4-1/2" to 10"

Delta Diamond ProductsSKU: TILCY-045

Select a Size from Dropdown List

Price:
Sale price$27.03 USD

Description

BOSS HOG® Supreme Mesh Turbo diamond blades are the newest tile blades engineered to meet the demands of experienced tile setters. Supreme grade means they use the highest level of diamond concentration for the best possible cutting performance.
Be it intricate residential projects or expansive commercial undertakings, they are the perfect blade for your tile cutting needs.

  • Ideal for hard ceramics, porcelains, granite, and other similar materials.
  • Supreme grade diamond rim, chipping is minimized, and diamond concentration is maximized resulting in flawlessly smooth finished cuts.
  • Thick reinforced center hub for a more stable, straighter cut.

Limited Lifetime Warranty

All diamond tool products including blades, coring bits, hole saws and grinding wheels include a limited lifetime warranty against warping, cracking and material defects. If any diamond tool (being used for its intended purpose with at least 50% of the diamond life remaining) fails to cut or work properly, or if the bond between the diamond segment and the steel core becomes separated at any time, the tool may be replaced free of charge.

Use the table below as safe speed guidelines for your diamond blade.
Blade Diameter Rec. RPM Max. RPM
4" 9,000 15,200
4-1/2" 8,000 13,500
5" 7,200 12,200
6" 6,500 11,090
7" 5,100 8,730
8" 4,500 7,640
9" 4,000 6,700
10" 3,600 6,115
12" 3,000 5,095
12" High Speed N/A 6,300
14" 2,500 4,364
14" High Speed N/A 5,460
16" 2,200 3,800
16" High Speed N/A 4,724
18" 2,000 3,300
20" 1,800 3,000
24" 1,500 2,550
26" 1,300 2,350
28" 1,200 2,185
30" 1,200 2,040
32" 1,100 1,910
36" 1,000 1,700
42" 800 1,455
48" 700 1,275
*Recommended RPM based on 9,500 SFPM.
