Husqvarna DMS 430 Core Drill Rig - Holes up to 18"

Roll over image to zoom in Click on image to zoom

Husqvarna DMS 430 Core Drill Rig - Holes up to 18"

Name: Husqvarna DMS 430 Core Drill Rig - Holes up to 18"
Brand: Husqvarna
SKU: 970573401
Price: 5098.0 USD
Availability: InStock

Save 14%

HusqvarnaSKU: 970573401

Price:

$5,098.00 USD $5,910.00 USD

Quantity:

Share this product

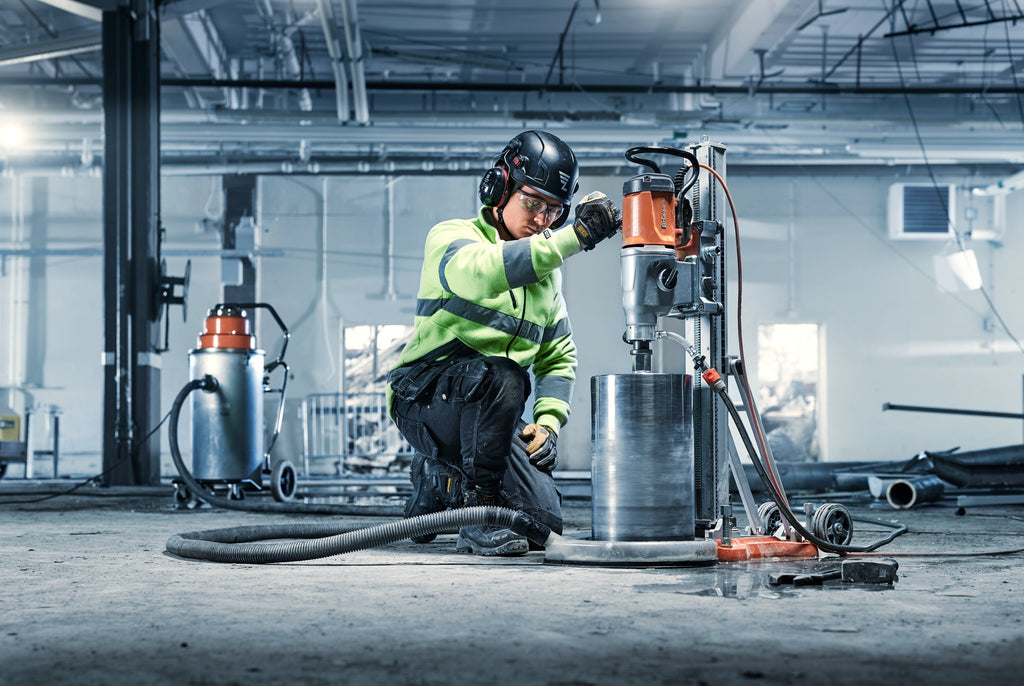

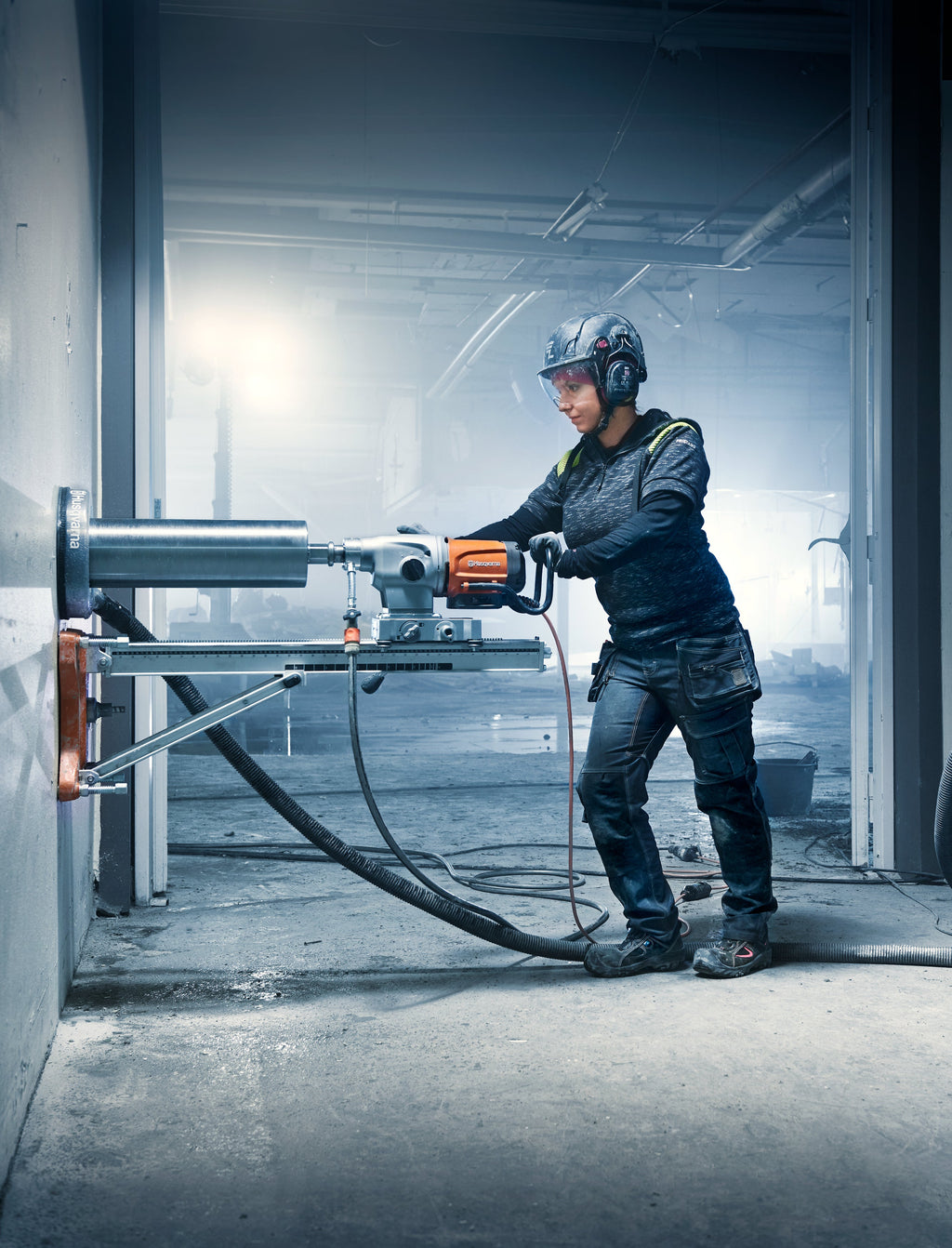

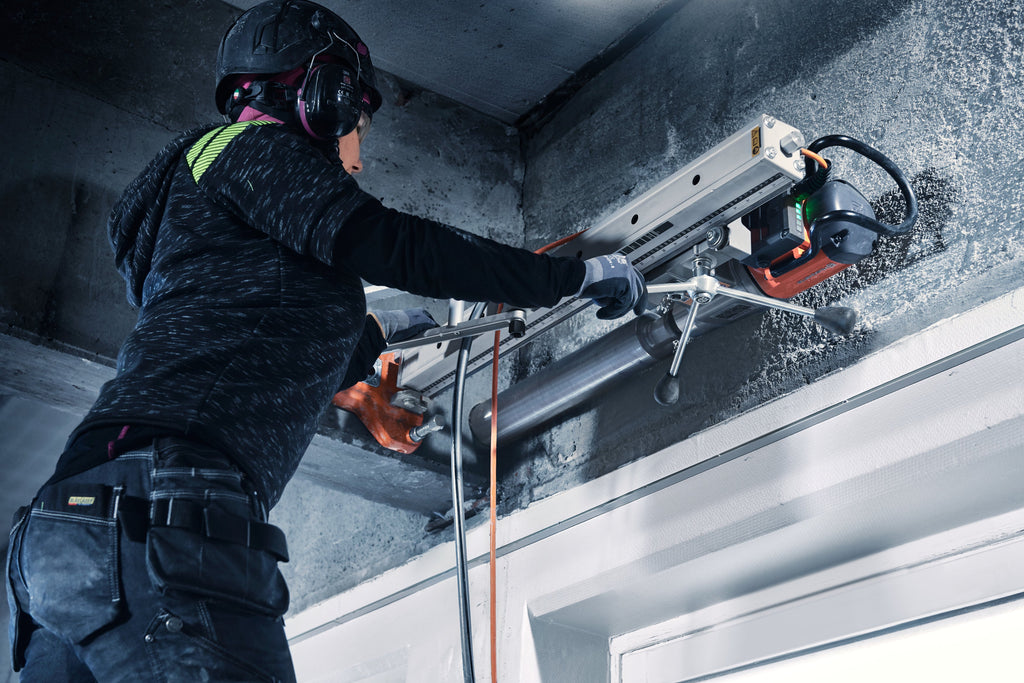

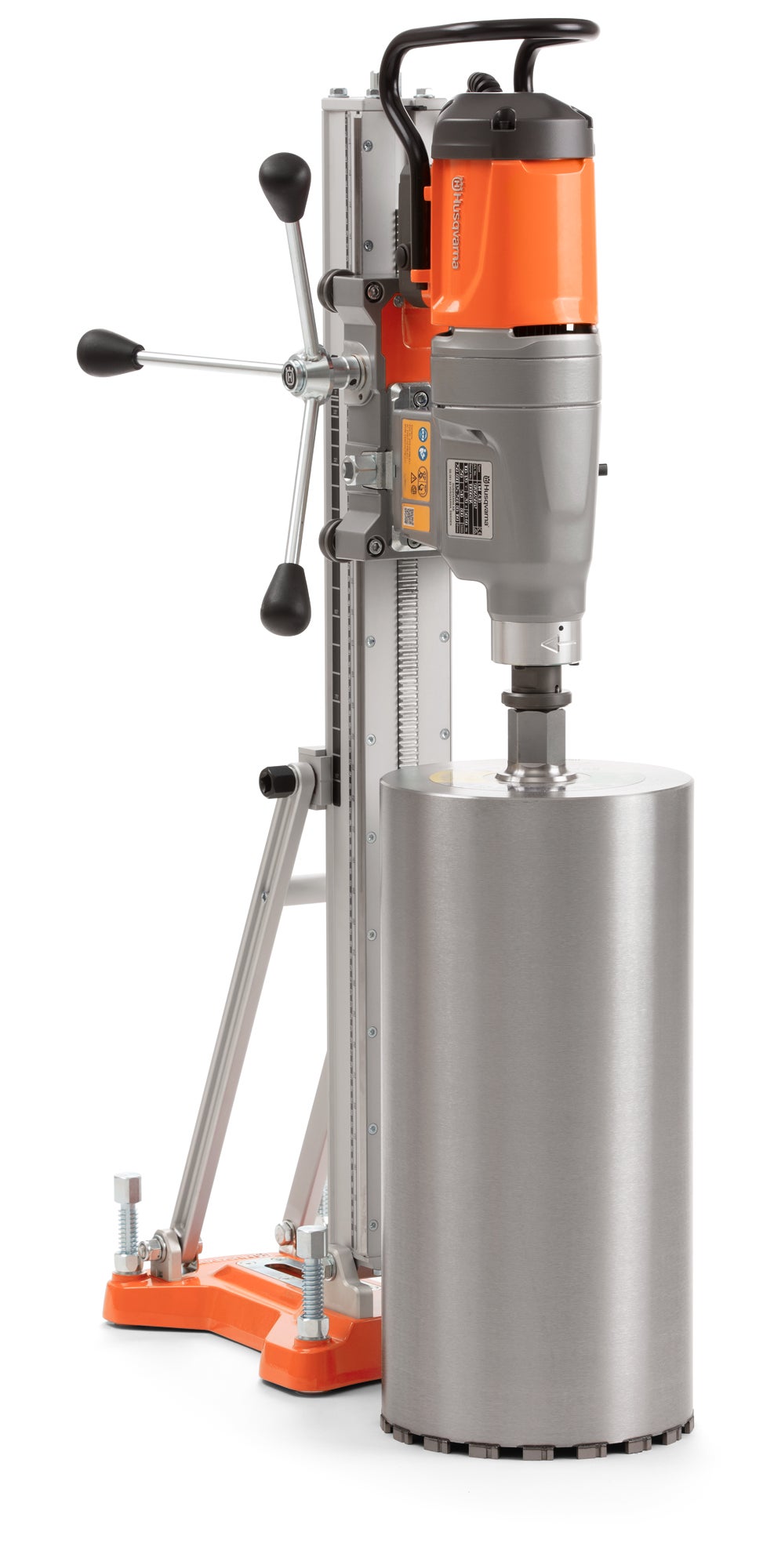

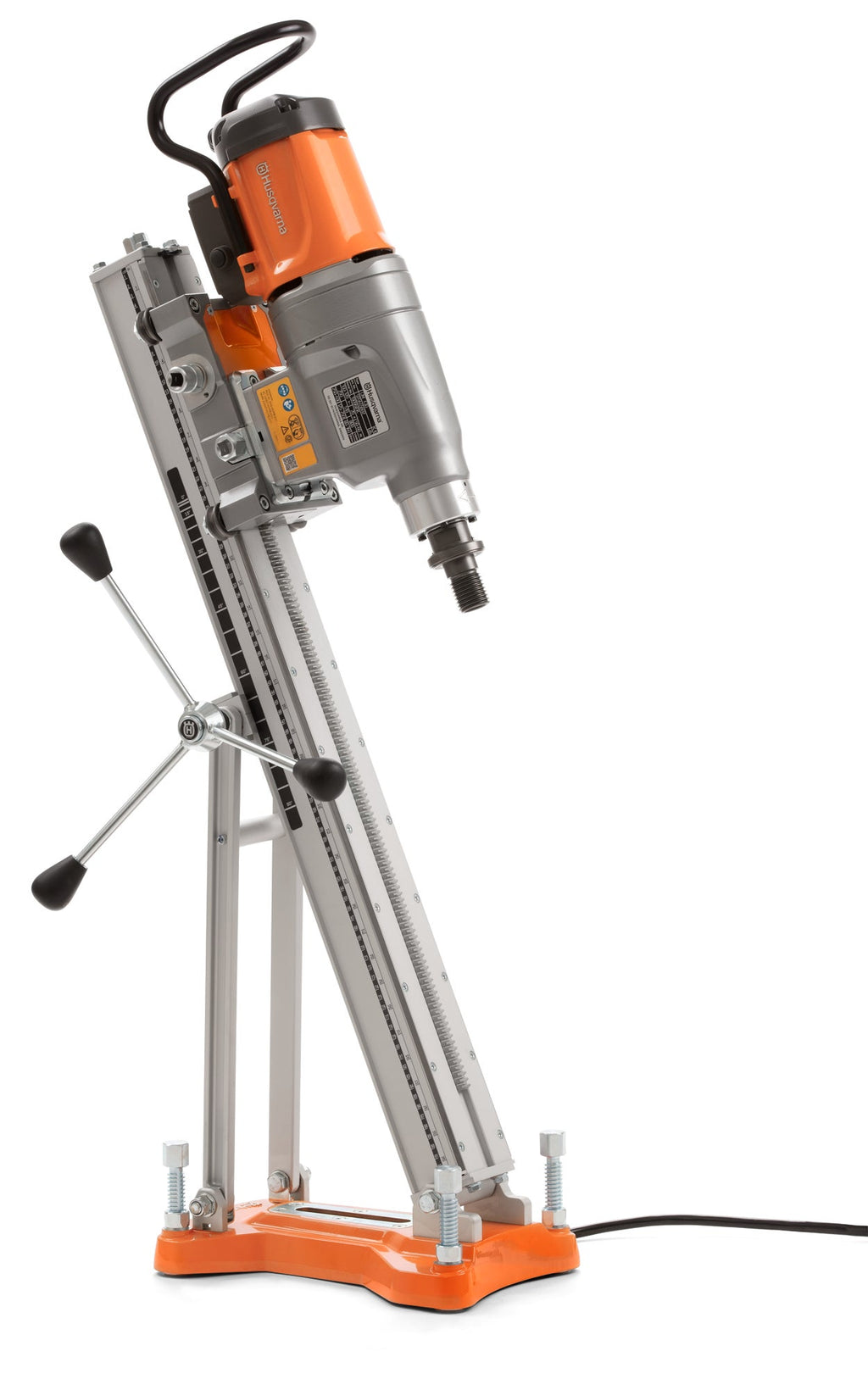

DMS 430 is a powerful and sturdy electric core drill and stand for medium to heavy core drilling where reliability and high productivity is needed. An ideal sturdy system suitable for walls, floors or roofs up to 450 mm diameter. The stand is quick and easy to set up and connect to the drill motor and provides stability when drilling for water evacuation, ventilation, angle drilling and stitch drilling.

All diamond tool products including blades, coring bits, hole saws and grinding wheels include a limited lifetime warranty against warping, cracking and material defects. If any diamond tool (being used for its intended purpose with at least 50% of the diamond life remaining) fails to cut or work properly, or if the bond between the diamond segment and the steel core becomes separated at any time, the tool may be replaced free of charge.

Use the table below as safe speed guidelines for your diamond blade.

Blade Diameter	Rec. RPM	Max. RPM
4"	9,000	15,200
4-1/2"	8,000	13,500
5"	7,200	12,200
6"	6,500	11,090
7"	5,100	8,730
8"	4,500	7,640
9"	4,000	6,700
10"	3,600	6,115
12" High Speed	n/a	6,300
14" High Speed	n/a	5,460
16" High Speed	n/a	4,724
18"	2,000	3,300
20"	1,800	3,000
24"	1,500	2,550
26"	1,300	2,350
28"	1,200	2,185
30"	1,200	2,040
32"	1,100	1,910
36"	1,000	1,700
42"	800	1,455
48"	700	1,275

*Recommended saw blade RPM based on 9,500 SFPM.

FAQs About Saw Blade RPMs

Why is it important to follow the recommended RPM?

Following the recommended saw blade RPM ensures the blade operates at optimal cutting speed, minimizes wear, and reduces the risk of damage to the blade or equipment.

What happens if I exceed the maximum RPM for a diamond blade?

Exceeding the maximum RPM can cause the blade to overheat, warp, or even break, potentially leading to unsafe working conditions.

What does SFPM mean in the chart footnote?

SFPM stands for Surface Feet Per Minute. It measures the speed at which the blade’s edge moves through the material being cut. The chart is based on a standard of 9,500 SFPM for optimal performance.

How do I determine the correct RPM for my saw and blade?

Match the blade diameter with the corresponding RPM values in the chart. Use the recommended RPM as a guide for safe and efficient cutting.

Can I use a blade at a lower RPM than recommended?

Using a blade at a significantly lower RPM than recommended can reduce cutting efficiency and may result in uneven cuts or slower performance.

Use the table below for cutting depth guidelines - actual depths may vary slightly.

Hand-Held Cut Off Saw Blade Diameter	Cutting Depth
12-Inch	4"
14-Inch	5"
16-Inch	6"
Walk-Behind Saw Blade Diameter	Cutting Depth
12-Inch	3-5/8"
14-Inch	4-5/8"
16-Inch	5-5/8"
18-Inch	6-5/8"
20-Inch	7-5/8"
24-Inch	9-5/8"
26-Inch	10-5/8"
30-Inch	11-5/8"
36-Inch	14-3/4"
42-Inch	17-3/4"
48-Inch	20-3/4"
