Description

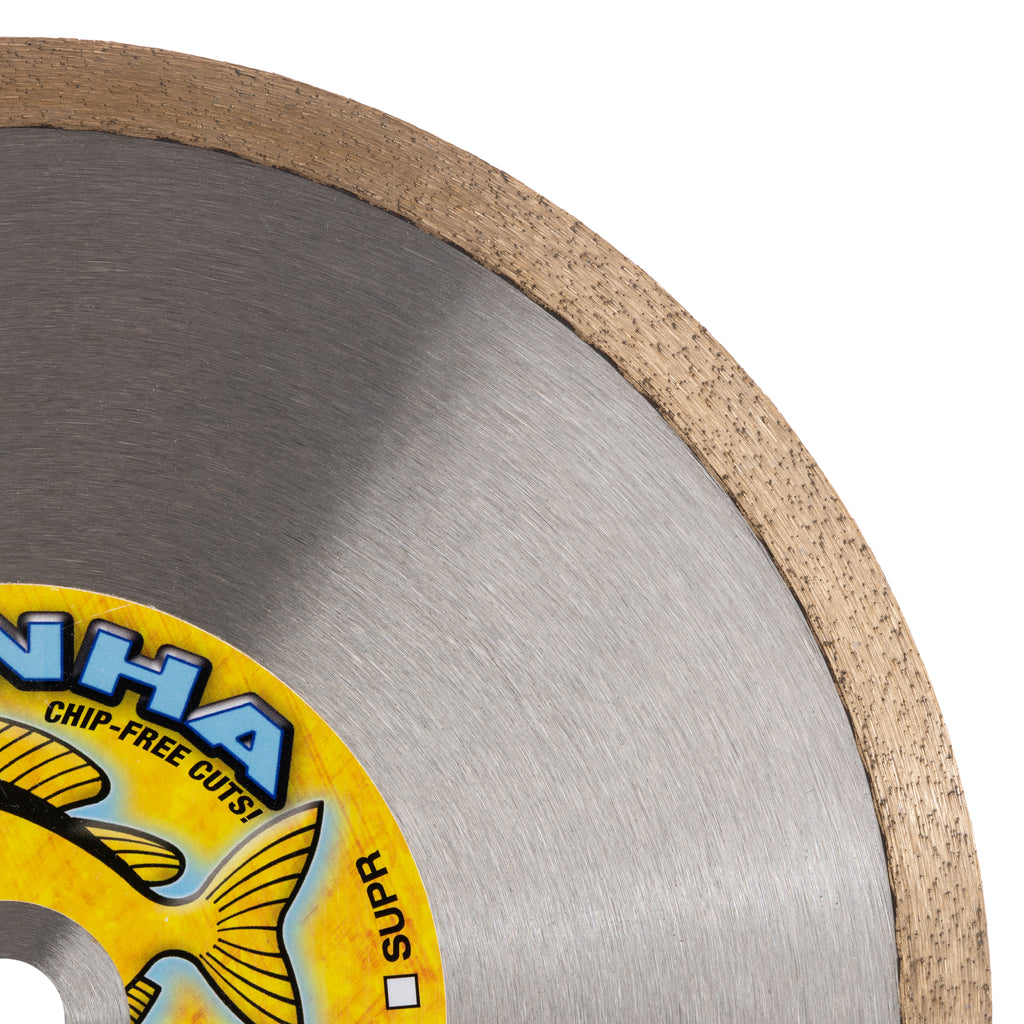

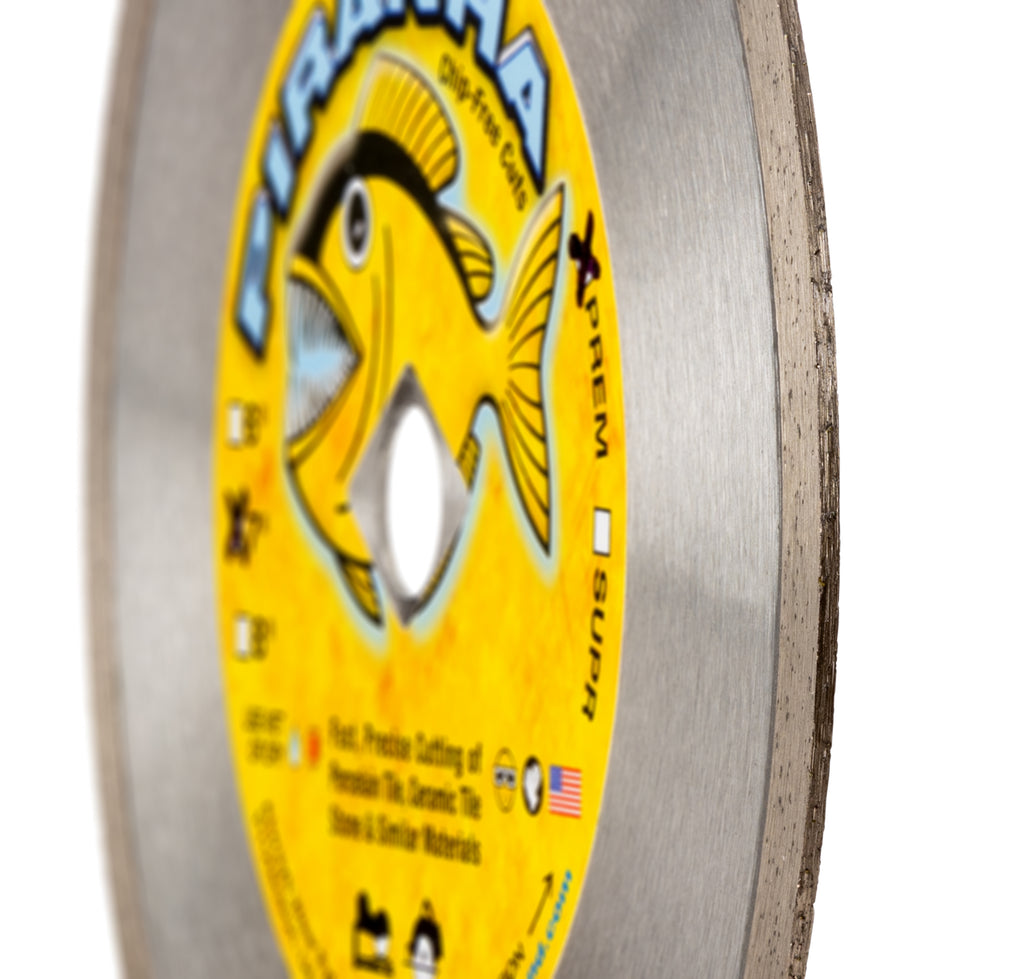

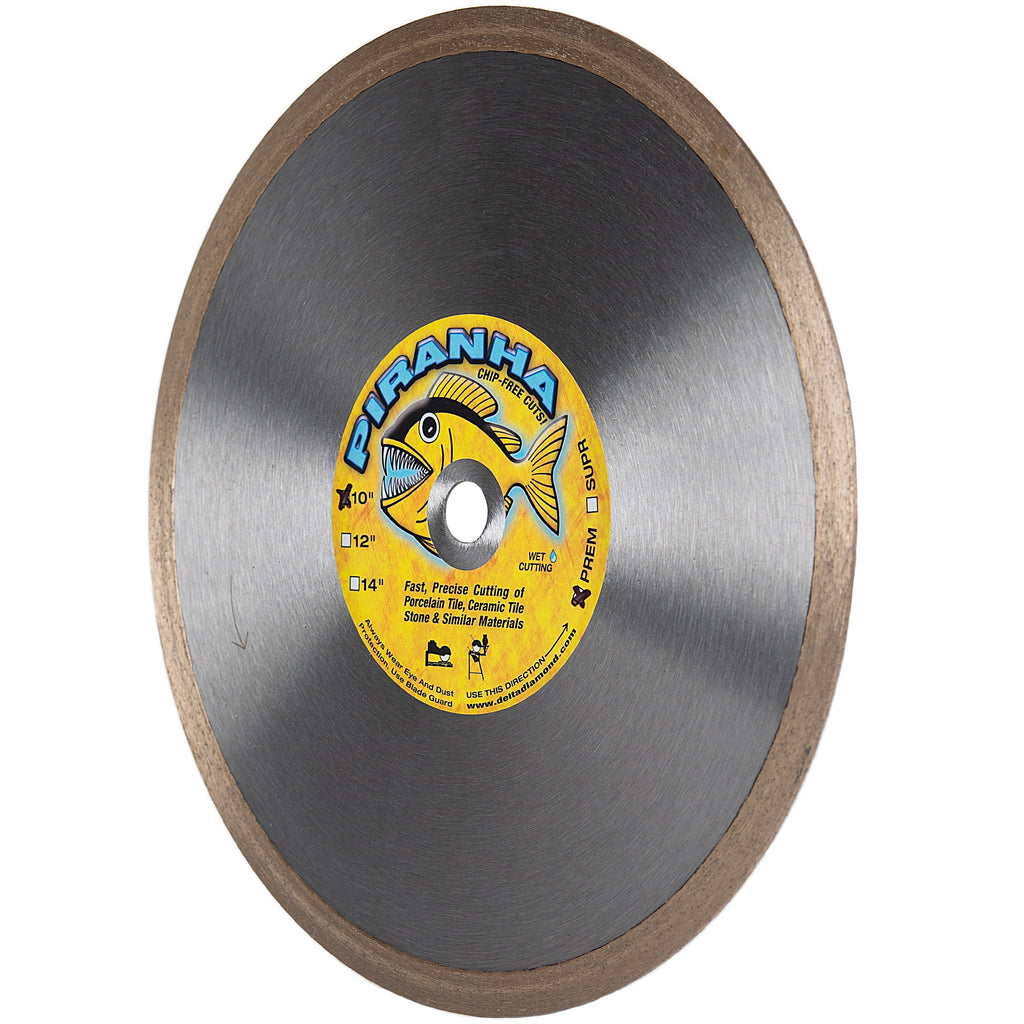

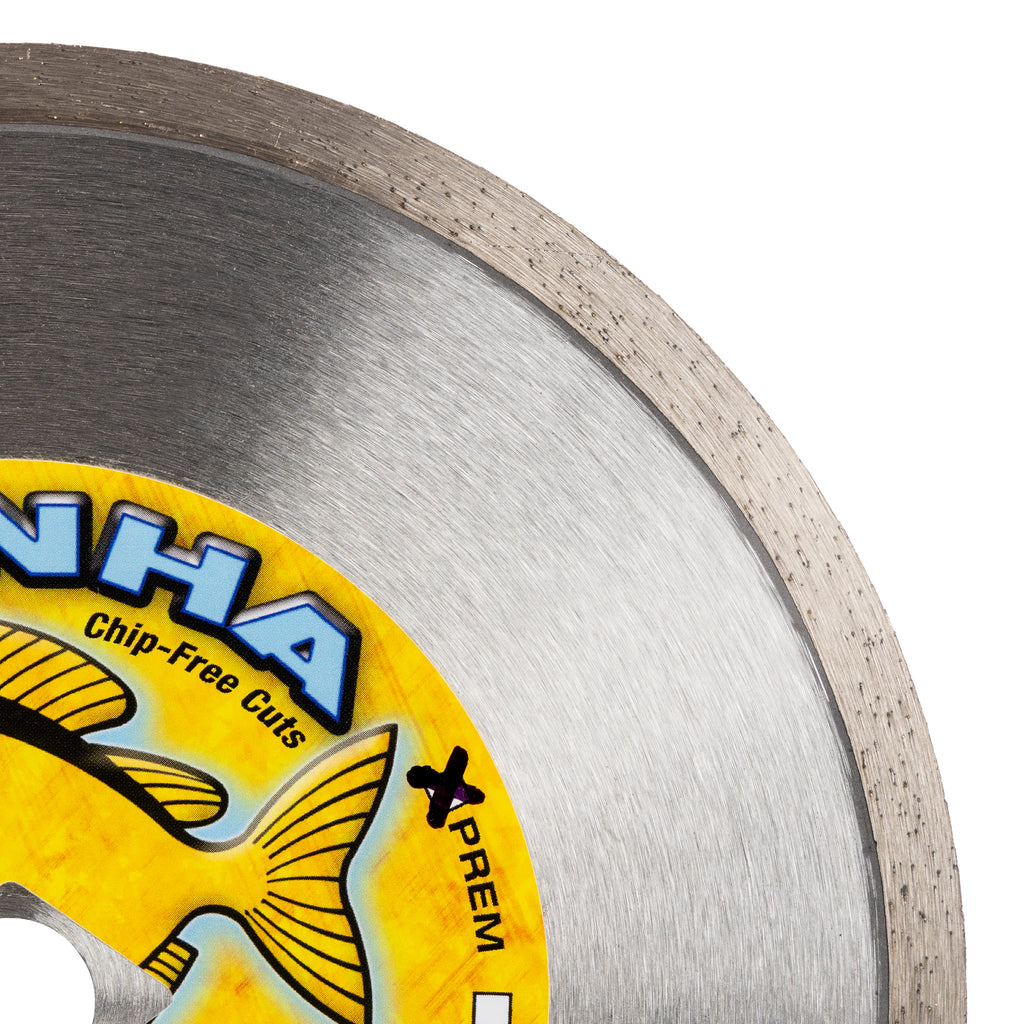

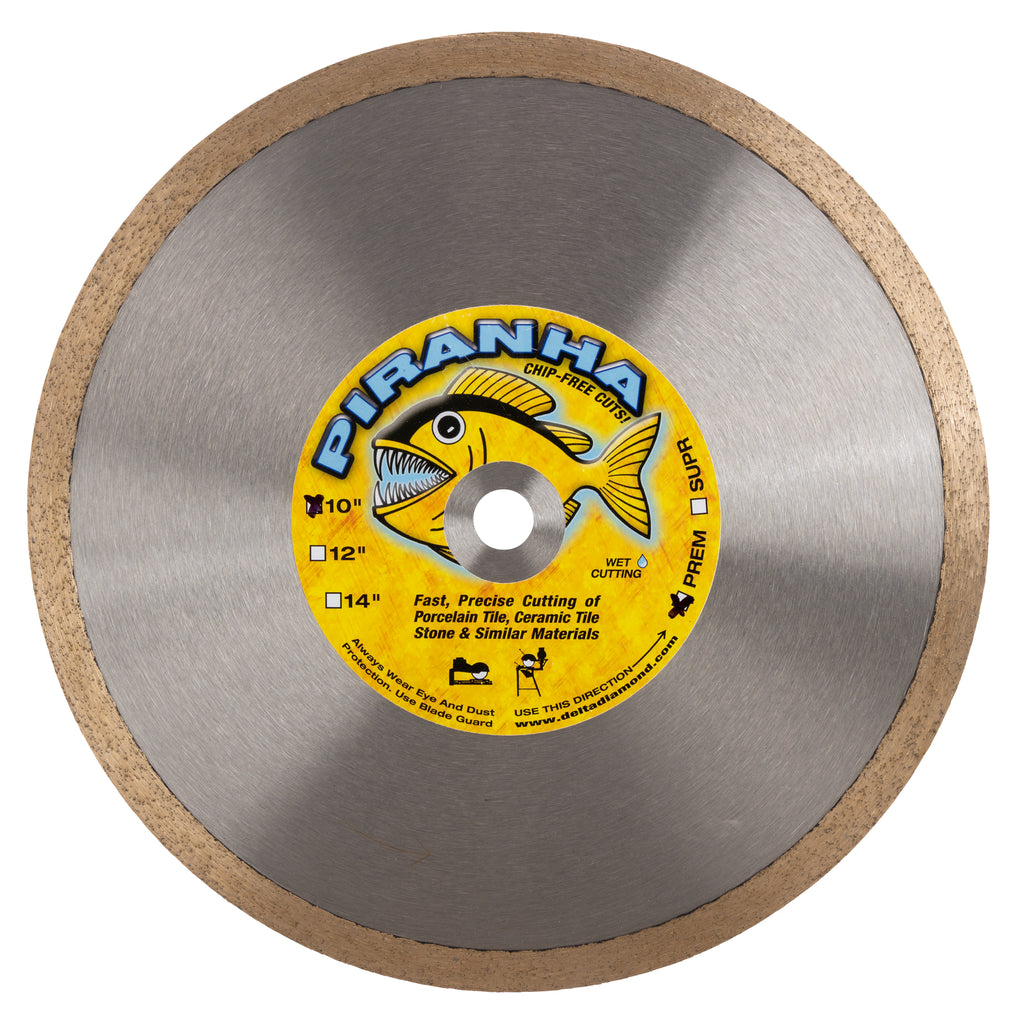

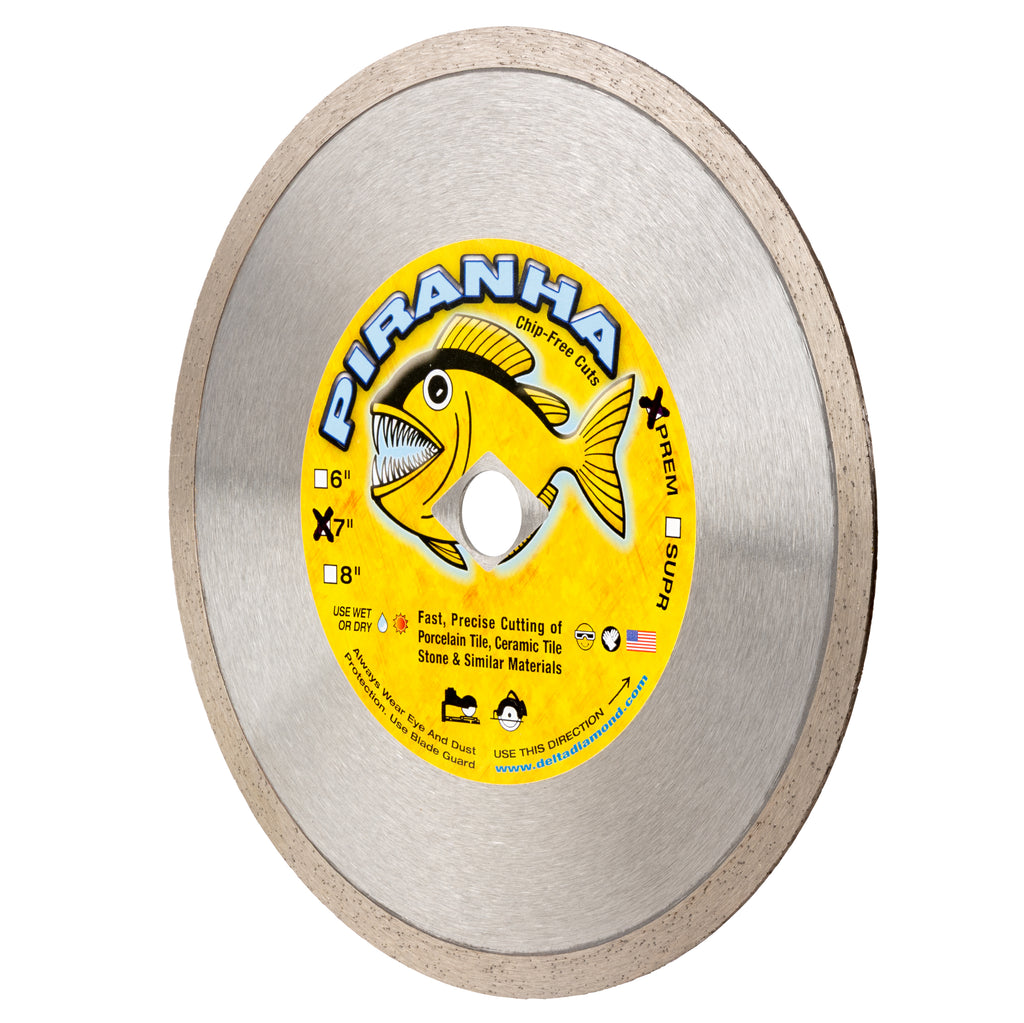

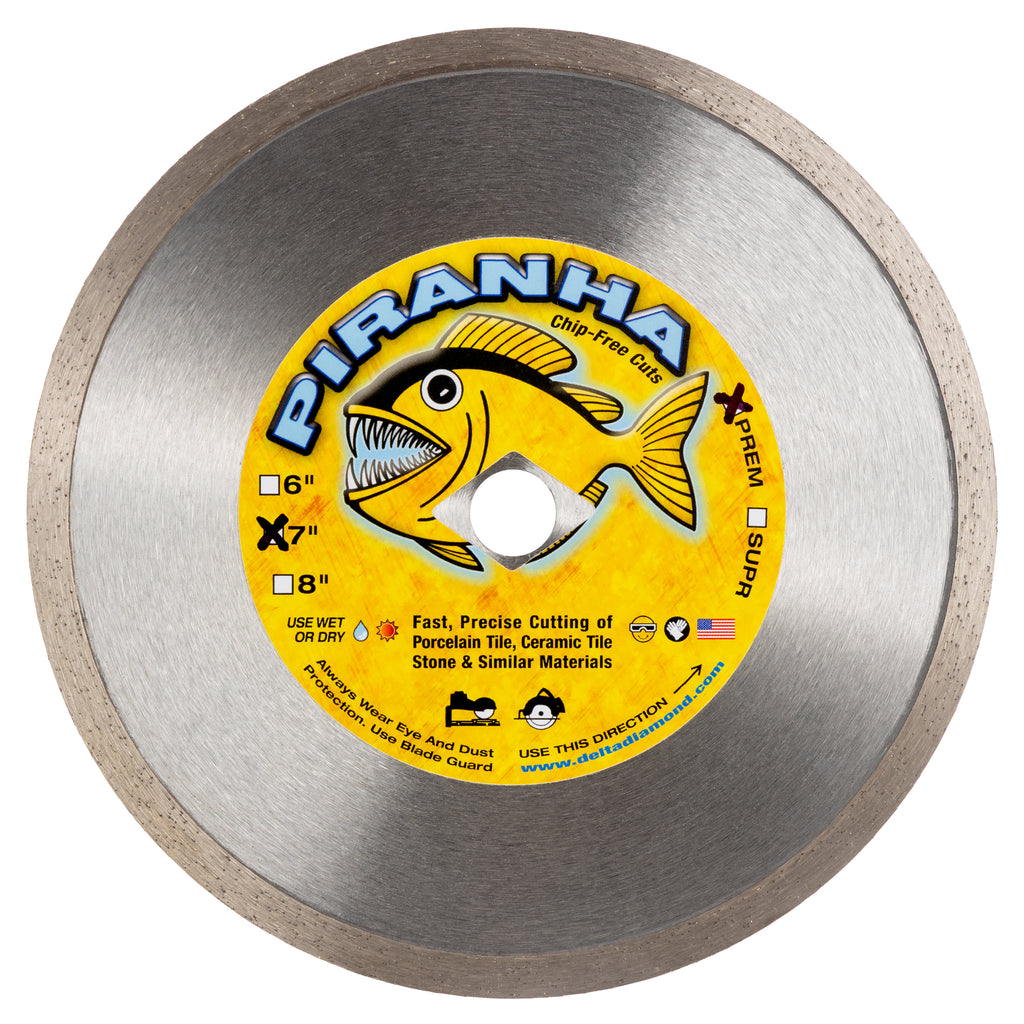

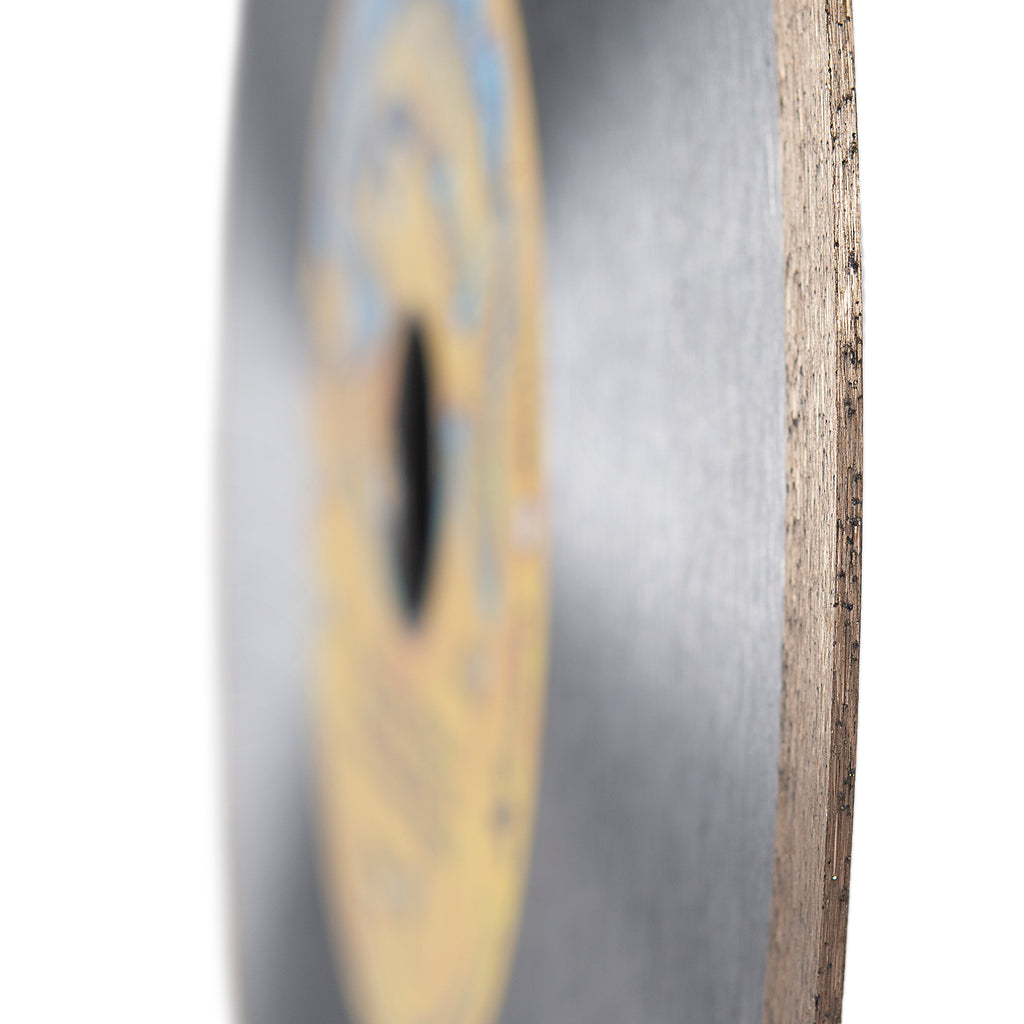

Use Piranha wet cutting only diamond blade when you want fast cutting with high durability and a smooth finish. Cuts porcelain tile, ceramic tile and natural stone such as marble and granite. The core is made from heat-treated hi-speed steel and is guaranteed to withstand the demands of high production cutting.
- Great for diagonal cuts or cutting an inside curve.
- Made with the highest quality GE Super-abrasive diamonds.
- The thin rim allows for the best combination of cutting speed and blade life while producing a first-class cut!
- Wet cutting only. Not intended for dry use. See Piranha Wet/Dry for dry use.
Limited Lifetime Warranty
All diamond tool products including blades, coring bits, hole saws and grinding wheels include a limited lifetime warranty against warping, cracking and material defects. If any diamond tool (being used for its intended purpose with at least 50% of the diamond life remaining) fails to cut or work properly, or if the bond between the diamond segment and the steel core becomes separated at any time, the tool may be replaced free of charge.
Use the table below as safe speed guidelines for your diamond blade.
| Blade Diameter | Rec. RPM | Max. RPM |
| 4" | 9,000 | 15,200 |
| 4-1/2" | 8,000 | 13,500 |
| 5" | 7,200 | 12,200 |
| 6" | 6,500 | 11,090 |
| 7" | 5,100 | 8,730 |
| 8" | 4,500 | 7,640 |
| 9" | 4,000 | 6,700 |
| 10" | 3,600 | 6,115 |
| 12" | 3,000 | 5,095 |
| 12" High Speed | N/A | 6,300 |
| 14" | 2,500 | 4,364 |
| 14" High Speed | N/A | 5,460 |
| 16" | 2,200 | 3,800 |
| 16" High Speed | N/A | 4,724 |
| 18" | 2,000 | 3,300 |
| 20" | 1,800 | 3,000 |
| 24" | 1,500 | 2,550 |
| 26" | 1,300 | 2,350 |
| 28" | 1,200 | 2,185 |
| 30" | 1,200 | 2,040 |
| 32" | 1,100 | 1,910 |
| 36" | 1,000 | 1,700 |
| 42" | 800 | 1,455 |
| 48" | 700 | 1,275 |
*Recommended RPM based on 9,500 SFPM.
